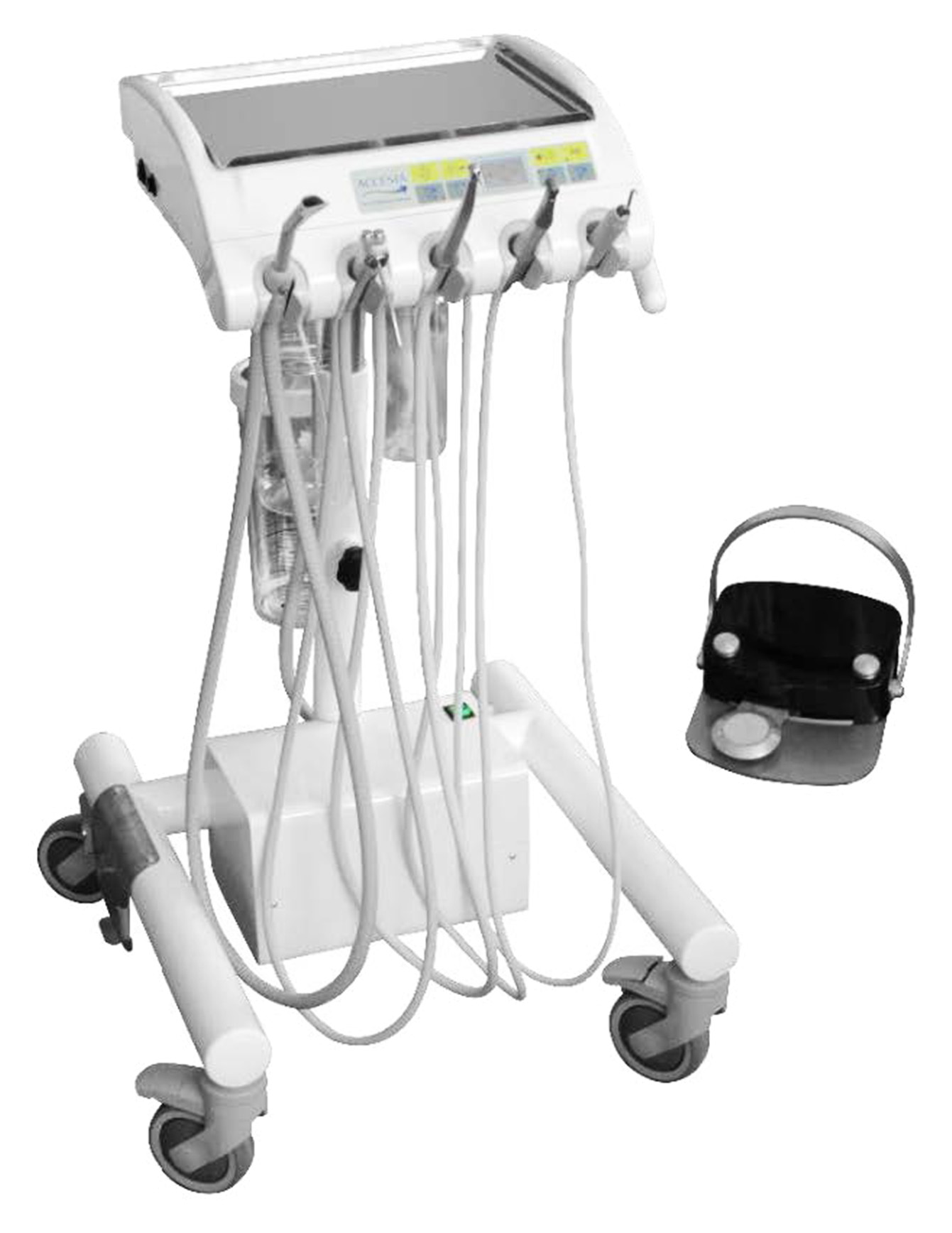

Manual for Accesia Unit G4
1. Installation of saline irrigation hose in the pump
1.1 The soft part of the hose here
1.2 The hose into the handpiece
2. Compressor
2.1 Switch compressor on / off
2.2 Mounting of intake filter on compressor
2.3 Pressure gauge on compressor
2.4 Opening & closing of air valve
2.5 Emptying air in the compressor tank
3. Unit
3.1 Fill the waterbottle
3.2 Start the unit
3.3 Foot pedal in holder and on floor
3.4 Placing of handpieces
3.5 Adjust highspeed water on/off & the motors direction of rotation
3.6 Adjust water
3.7 Adjust lowspeed & water on/off
3.8 Saline irrigation system activation & adjusting
4. Scaler
4.1 Adjust scaler

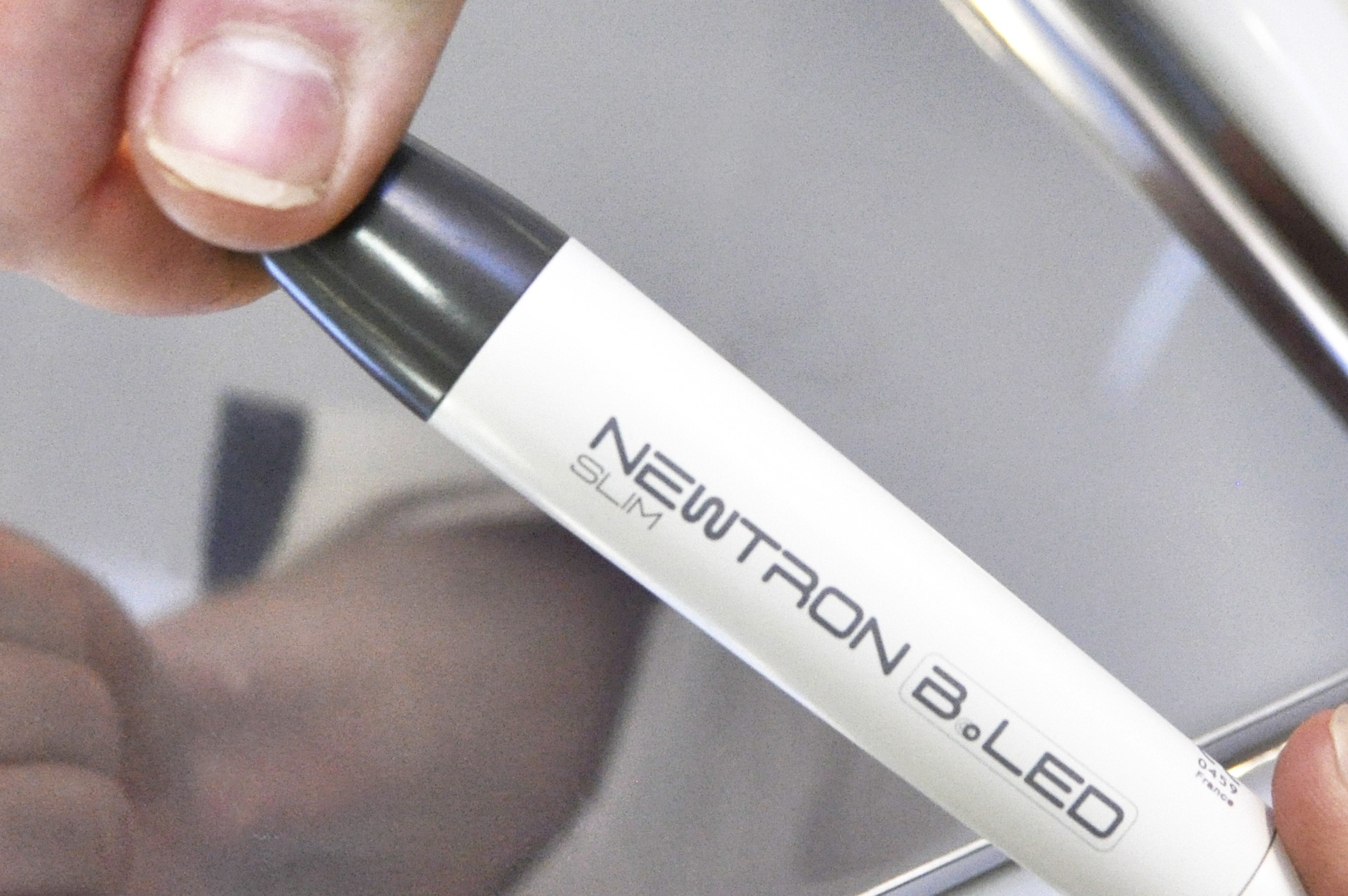

4.2 Pieces on the handpiece
4.3 Mounting of scaler tip with the help of a torque wrench
5. Turbine s.15
5.1 Adjustment on MultiFlex
5.2 Lubrication of turbine
1. Installation of saline irrigation hose in the pump
1.1 The soft part of the hose here
1.2 The hose into the handpiece

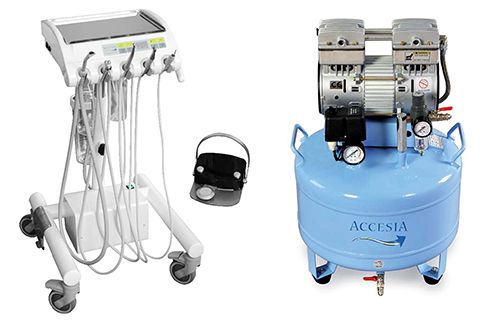

Compressor
To think about
1. Compressor and suction system must be installed in dust-free spaces with good ventilation and without risk of moisture.
2. Ventilation is necessary as both of these units generate a lot of waste heat.
The compressed air up to the treatment site must be clean, dry, particle-free
and oil-free.
3. The compressor must therefore be equipped with a condensate separator,
dehumidifier or similar.
4. The filter for the compressor must be checked regularly, replaced and the
pressure tank vented and emptied of any condensed water.
5. Hot and too humid environment in the compressor’s pressure tank creates
an excellent environment for, for example, rust attacks but also fungi and
microorganisms.
1. Compressor and suction system must be installed in dust-free spaces with good ventilation and without risk of moisture.
2. Ventilation is necessary as both of these units generate a lot of waste heat.
The compressed air up to the treatment site must be clean, dry, particle-free
and oil-free.
3. The compressor must therefore be equipped with a condensate separator,
dehumidifier or similar.
4. The filter for the compressor must be checked regularly, replaced and the
pressure tank vented and emptied of any condensed water.
5. Hot and too humid environment in the compressor’s pressure tank creates
an excellent environment for, for example, rust attacks but also fungi and
microorganisms.
2.1 Switch compressor on / off
2.2 Mounting of intake filter on compressor

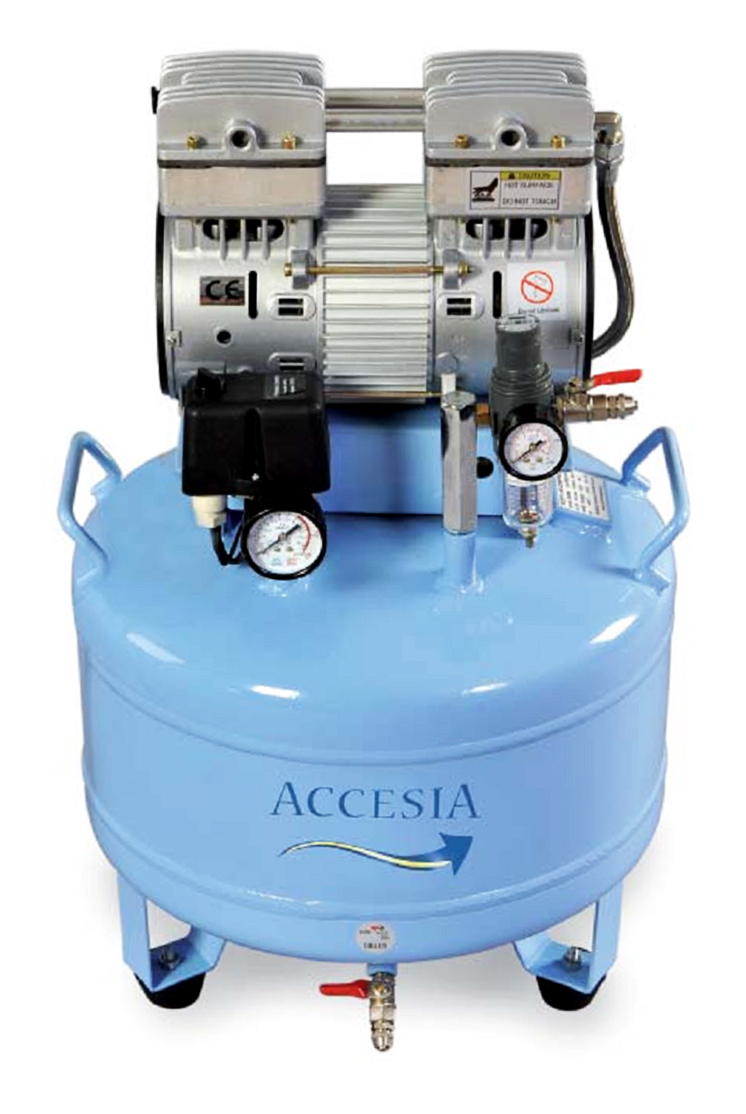

2.3 Pressure gauge on compressor
Ut: 4-5bar
2.4 Opening & closing of air valve
2.5 Emptying air in the compressor tank
Approx 1 time/day
3. Unit
3.1 Fill the waterbottle
3.2 Start the unit
3.3 Foot pedal in holder and on floor
3.4 Placing of handpieces
Accesia Unit G4 has sensing in handpiece holder. It is not possible to change places on handpieces.
3.5 Adjust highspeed water on/off & the motors direction of rotation
Highspeed runs at full speed, not adjustable.
Water On/Off is controlled with a button on the foot pedal or on the panel.
Water On/Off is controlled with a button on the foot pedal or on the panel.
3.6 Adjust water
On the underside there is a knob, no. 1, to regulate the amount of water. If the handpiece has a multiflex connection, the amount of water can be regulated or switched off there.
3.7 Adjust lowspeed & water on/off
Lowspeed is adjustable with foot pedal. Water on/off is controlled with a button on the foot pedal or on the panel. The amount of water can be regulated with knob 2 on the underside.
The saline irrigation pump which is connected to lowspeed starts at the same time if it is activated.
The saline irrigation pump which is connected to lowspeed starts at the same time if it is activated.
3.8 Saline irrigation system activation & adjusting
The saline pump has a button that, when pressed, activates the pump. Then the pump starts when the foot pedal is depressed. Pump speed regulated next to the on/off button.
4. Scaler
4.1 Adjust scaler
Scaler adjustable with foot pedal. Water is always on. The amount of water can be regulated with knob no. 2 on the underside.
4.2 Pieces on the handpiece
To think about: - High grade clean between each patient
4.3 Mounting of scaler tip with the help of a torque wrench
We recommend the following tips
Satelec Scaler tip 1
Satelec Scaler tip 1S
Torque Wrench Satelec Easy torque
Satelec Scaler tip 1S
Torque Wrench Satelec Easy torque

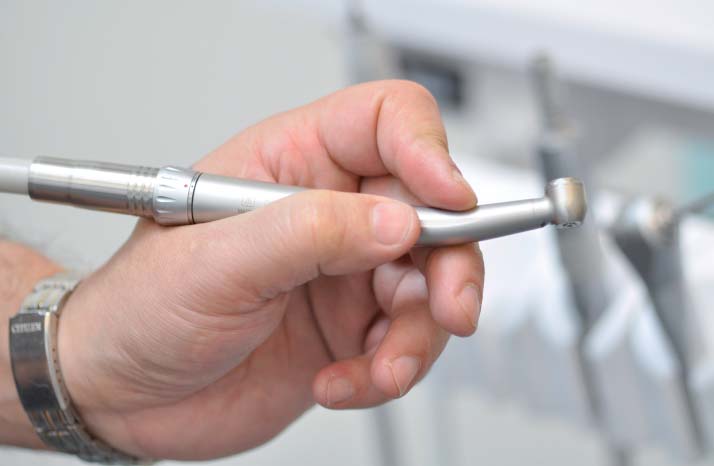

5. Turbine
5.1 Setting on MultiFlex Check the dots and O-rings
5.2 Lubrication of turbine
Done after cleaning, ”washing, lubricating, autoclaving”.
